Monoelica - Rotazione destra, elica sinistra

Frese costruite con metallo duro micrograna ad alta precisione.
Non rivestite.
Applicazioni: consigliata per fresatura di materiali plastici e derivati

Rotazione destra, elica sinistra - tagliente 30°
Micrograna K10

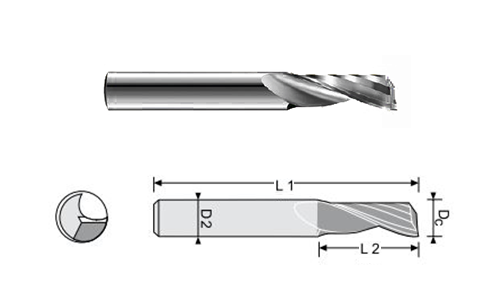

ØD = h10 - Ød1 = h6

​​​​​​​

PRODOTTO	CODICE	D	L1	d1	L
MA (D 1.0-L1 4-d1 3.0-L 38)	NEXT-ST MA01.0	1.0	4	3.0	38
MA (D 1.5-L1 5-d1 3.0-L 38)	NEXT-ST MA01.5	1.5	5	3.0	38
MA (D 2.0-L1 10-d1 3.0-L 38)	NEXT-ST MA02.0	2.0	10	3.0	38
MA (D 2.5-L1 12-d1 3.0-L 38)	NEXT-ST MA02.5	2.5	12	3.0	38
MA (D 3.0-L1 12-d1 3.0-L 38)	NEXT-ST MA03.0	3.0	12	3.0	38
MA (D 4.0-L1 15-d1 4.0-L 40)	NEXT-ST MA04.0	4.0	15	4.0	40
MA (D 5.0-L1 16-d1 5.0-L 50)	NEXT-ST MA05.0	5.0	16	5.0	50
MA (D 6.0-L1 18-d1 6.0-L 50)	NEXT-ST MA06.0	6.0	18	6.0	50
MA (D 6.0-L1 25-d1 6.0-L 60)	NEXT-ST MA06.0L	6.0	25	6.0	60
MA (D 8.0-L1 22-d1 8.0-L 63)	NEXT-ST MA08.0	8.0	22	8.0	63
MA (D 8.0-L1 40-d1 8.0-L 80)	NEXT-ST MA08.0L	8.0	40	8.0	80
MA (D 10.0-L1 30-d1 10.0-L 72)	NEXT-ST MA10.0	10.0	30	10.0	72
MA (D 12.0-L1 30-d1 12.0-L 73)	NEXT-ST MA12,0	12.0	30	12.0	73
MA (D 14.0-L1 30-d1 14.0-L 75)	NEXT-ST MA14.0	14.0	30	14.0	75
MA (D 16.0-L1 35-d1 16.0-L 82)	NEXT-ST MA16.0	16.0	35	16.0	82
