Punta alte prestazioni, gambo rinforzato 5xd

Punta elicoidale ad alte prestazioni
Gambo DIN 6535 HA, Max profondità foro 5 x d
Metallo duro: 10% Co micrograna
Profilo: Geometria speciale
Applicazioni: Acciaio, ghisa, acciai alta resistenza,
materiali non ferrosi, alluminio, leghe a base di Co e Ni,
leghe di titanio
Su richiesta: Esecuzione speciale, diametri intermedi
Riaffilature/rivestimento - Attacco DIN 6535 HE

​​​​​​​
​​​​​​​

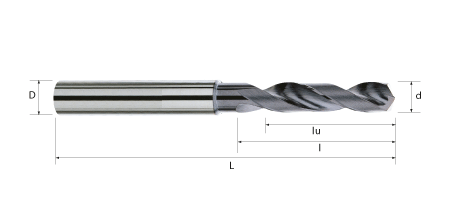

PRODOTTO	CODICE	d	D	L	l	lu
2.950 ST (d 4.00-D 6-L 74-l 36-lu 29)	NEXT-TNT 2.950 ST-4.00	4,00	6	74	36	29
2.950 ST (d 4.20-D 6-L 74-l 36-lu 29)	NEXT-TNT 2.950 ST-4.20	4,20	6	74	36	29
2.950 ST (d 4.50-D 6-L 74-l 36-lu 29)	NEXT-TNT 2.950 ST-4.50	4,50	6	74	36	29
2.950 ST (d 5.00-D 6-L 82-l 44-lu 35)	NEXT-TNT 2.950 ST-5.00	5,00	6	82	44	35
2.950 ST (d 5.10-D 6-L 82-l 44-lu 35)	NEXT-TNT 2.950 ST-5.10	5,10	6	82	44	35
2.950 ST (d 5.50-D 6-L 82-l 44-lu 35)	NEXT-TNT 2.950 ST-5.50	5,50	6	82	44	35
2.950 ST (d 6.00-D 6-L 82-l 44-lu 35)	NEXT-TNT 2.950 ST-6.00	6,00	6	82	44	35
2.950 ST (d 6.50-D 8-L 91-l 53-lu 43)	NEXT-TNT 2.950 ST-6.50	6,50	8	91	53	43
2.950 ST (d 6.80-D 8-L 91-l 53-lu 43)	NEXT-TNT 2.950 ST-6.80	6,80	8	91	53	43
2.950 ST (d 7.00-D 8-L 91-l 53-lu 43)	NEXT-TNT 2.950 ST-7.00	7,00	8	91	53	43
2.950 ST (d 7.50-D 8-L 91-l 53-lu 43)	NEXT-TNT 2.950 ST-7.50	7,50	8	91	53	43
2.950 ST (d 8.00-D 8-L 91-l 53-lu 43)	NEXT-TNT 2.950 ST-8.00	8,00	8	91	53	43
2.950 ST (d 8.50-D 10-L 103-l 61-lu 49)	NEXT-TNT 2.950 ST-8.50	8,50	10	103	61	49
2.950 ST (d 8.80-D 10-L 103-l 61-lu 49)	NEXT-TNT 2.950 ST-8.80	8,80	10	103	61	49
2.950 ST (d 9.00-D 10-L 103-l 61-lu 49)	NEXT-TNT 2.950 ST-9.00	9,00	10	103	61	49
2.950 ST (d 9.50-D 10-L 103-l 61-lu 49)	NEXT-TNT 2.950 ST-9.50	9,50	10	103	61	49
2.950 ST (d 10.00-D 10-L 103-l 61-lu 49)	NEXT-TNT 2.950 ST-10.00	10,00	10	103	61	49
2.950 ST (d 10.50-D 12-L 118-l 71-lu 56)	NEXT-TNT 2.950 ST-10.50	10,50	12	118	71	56
2.950 ST (d 11.00-D 12-L 118-l 71-lu 56)	NEXT-TNT 2.950 ST-11.00	11,00	12	118	71	56
2.950 ST (d 12.00-D 12-L 118-l 71-lu 56)	NEXT-TNT 2.950 ST-12.00	12,00	12	118	71	56
