Fresa elicoidale raggiata Z=2, tagliente al centro

Fresa elicoidale raggiata Z=2, tagliente al centro
Metallo duro: 10% Co micrograna
Applicazioni: Fresature universali, anche per materiali non
ferrosi
Su richiesta: Esecuzione speciale di diametri intermedi e rivestimenti
3 taglienti - DIN 6535 HB

​​​​​​​
​​​​​​​

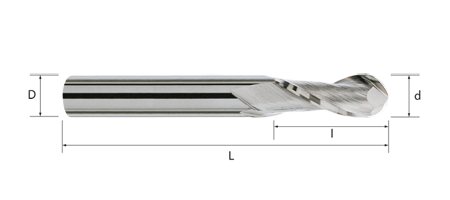

PRODOTTO	CODICE	d	D	L	l
3.2 R (d 2-D 2-L 38-l 8)	NEXT-TNT 3.2 R-2.00	2,00	2,00	38	8
3.2 R (d 2.5-D 2.5-L 38-l 8)	NEXT-TNT 3.2 R-2.50	2,50	2,50	38	8
3.2 R (d 3-D 3-L 38-l 12)	NEXT-TNT 3.2 R-3.00	3,00	3,00	38	12
3.2 R (d 3.5-D 3.5-L 40-l 12)	NEXT-TNT 3.2 R-3.50	3,50	3,50	40	12
3.2 R (d 4-D 4-L 40-l 12)	NEXT-TNT 3.2 R-4.00	4,00	4,00	40	12
3.2 R (d 4.5-D 4.5-L 50-l 14)	NEXT-TNT 3.2 R-4.50	4,50	4,50	50	14
3.2 R (d 5-D 5-L 50-l 14)	NEXT-TNT 3.2 R-5.00	5,00	5,00	50	14
3.2 R (d 5.5-D 5.5-L 50-l 16)	NEXT-TNT 3.2 R-5.50	5,50	5,50	50	16
3.2 R (d 6-D 6-L 50-l 16)	NEXT-TNT 3.2 R-6.00	6,00	6,00	50	16
3.2 R (d 6.5-D 6.5-L 50-l 16)	NEXT-TNT 3.2 R-6.50	6,50	6,50	50	16
3.2 R (d 7-D 7-L 60-l 20)	NEXT-TNT 3.2 R-7.00	7,00	7,00	60	20
3.2 R (d 7.5-D 7.5-L 60-l 20)	NEXT-TNT 3.2 R-7.50	7,50	7,50	60	20
3.2 R (d 8-D 8-L 60-l 20)	NEXT-TNT 3.2 R-8.00	8,00	8,00	60	20
3.2 R (d 8.5-D 8.5-L 60-l 20)	NEXT-TNT 3.2 R-8.50	8,50	8,50	60	20
3.2 R (d 9-D 9-L 60-l 20)	NEXT-TNT 3.2 R-9.00	9,00	9,00	60	20
3.2 R (d 9.5-D 9.5-L 70-l 22)	NEXT-TNT 3.2 R-9.50	9,50	9,50	70	22
3.2 R (d 10-D 10-L 70-l 22)	NEXT-TNT 3.2 R-10.00	10,00	10,00	70	22
3.2 R (d 11-D 11-L 70-l 22)	NEXT-TNT 3.2 R-11.00	11,00	11,00	70	22
3.2 R (d 12-D 12-L 70-l 22)	NEXT-TNT 3.2 R-12.00	12,00	12,00	70	22
3.2 R (d 13-D 13-L 75-l 25)	NEXT-TNT 3.2 R-13.00	13,00	13,00	75	25
3.2 R (d 14-D 14-L 75-l 25)	NEXT-TNT 3.2 R-14.00	14,00	14,00	75	25
3.2 R (d 15-D 15-L 75-l 25)	NEXT-TNT 3.2 R-15.00	15,00	15,00	75	25
3.2 R (d 16-D 16-L 75-l 25)	NEXT-TNT 3.2 R-16.00	16,00	16,00	75	25
3.2 R (d 18-D 18-L 100-l 32)	NEXT-TNT 3.2 R-18.00	18,00	18,00	100	32
3.2 R (d 20-D 20-L 100-l 32)	NEXT-TNT 3.2 R-20.00	20,00	20,00	100	32
