Fresa torica lunga

Fresa torica lunga
Metallo duro: 12% Co micrograna < 0,4 μ
Applicazioni: Produzione di stampi e matrici, turbine e per
il settore aeronautico, materiali temprati fino a 65 HRC e
resistenti al calore, grafite, ideonea anche per fresature a
secco
HSC < 50 HRC. HHC < 65 HRC

​​​​​​​
​​​​​​​

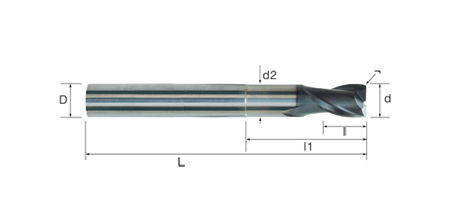

PRODOTTO	CODICE	d	D	d2	r	L	l	l1	Z
H.2 CR (d 3-D 6-d2 2.9-r 0.5-L 50-l 5-l1 20)	NEXT-TNT H.2 CR-3.00	3	6	2.9	0.5	50	5	20	2
H.2 CR (d 4-D 6-d2 3.8-r 0.5-L 50-l 6-l1 20)	NEXT-TNT H.2 CR-4.00	4	6	3.8	0.5	50	6	20	2
H.2 CR (d 5-D 6-d2 4.8-r 0.5-L 50-l 7-l1 20)	NEXT-TNT H.2 CR-5.00	5	6	4.8	0.5	50	7	20	2
H.2 CR (d 6-D 6-d2 5.8-r 0.5-L 60-l 9-l1 25)	NEXT-TNT H.2 CR-6.00	6	6	5.8	0.5	60	9	25	2
H.2 CR (d 6-D 6-d2 5.8-r 1-L 60-l 9-l1 25)	NEXT-TNT H.2 CR-6.00	6	6	5.8	1	60	9	25	2
H.2 CR (d 8-D 8-d2 7.8-r 0.5-L 78-l 11-l1 35)	NEXT-TNT H.2 CR-8.00	8	8	7.8	0.5	78	11	35	2
H.2 CR (d 8-D 8-d2 7.8-r 1-L 78-l 11-l1 35)	NEXT-TNT H.2 CR-8.00	8	8	7.8	1	78	11	35	2
H.2 CR (d 8-D 8-d2 7.8-r 1.5-L 78-l 11-l1 35)	NEXT-TNT H.2 CR-8.00	8	8	7.8	1.5	78	11	35	2
H.2 CR (d 10-D 10-d2 9.6-r 0.5-L 78-l 13-l1 35)	NEXT-TNT H.2 CR-10.00	10	10	9.6	0.5	78	13	35	2
H.2 CR (d 10-D 10-d2 9.6-r 1-L 78-l 13-l1 35)	NEXT-TNT H.2 CR-10.00	10	10	9.6	1	78	13	35	2
H.2 CR (d 10-D 10-d2 9.6-r 1.5-L 78-l 13-l1 35)	NEXT-TNT H.2 CR-10.00	10	10	9.6	1.5	78	13	35	2
H.2 CR (d 12-D 12-d2 11.5-r 1-L 100-l 15-l1 40)	NEXT-TNT H.2 CR-12.00	12	12	11.5	1	100	15	40	2
H.2 CR (d 12-D 12-d2 11.5-r 1.5-L 100-l 15-l1 40)	NEXT-TNT H.2 CR-12.00	12	12	11.5	1.5	100	15	40	2
H.2 CR (d 12-D 12-d2 11.5-r 2-L 100-l 15-l1 40)	NEXT-TNT H.2 CR-12.00	12	12	11.5	2	100	15	40	2
