Fresa torica extra lunga

Fresa torica extra lunga
Metallo duro: 12% Co micrograna < 0,4 μ
Applicazioni: Produzione di stampi e matrici, turbine e
per il settore aeronautico, materiali temprati fino a 65 HRC
e resistenti al calore, grafite, ideonea anche per fresature a
secco
HSC < 50 HRC. HHC < 65 HRC

​​​​​​​
​​​​​​​

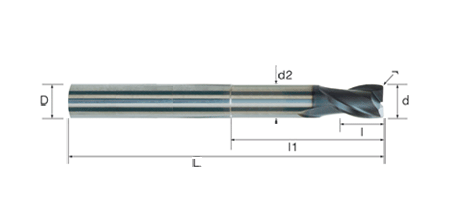

PRODOTTO	CODICE	d	D	d2	r	L	l	l1	Z
H.2 CRL (d 3-D 6-d2 2.9-r 0.5-L 78-l 5-l1 25)	NEXT-TNT H.2 CRL-1	3	6	2.9	0.5	78	5	25	2
H.2 CRL (d 4-D 6-d2 3.8-r 0.5-L 78-l 6-l1 30)	NEXT-TNT H.2 CRL-2	4	6	3.8	0.5	78	6	30	2
H.2 CRL (d 5-D 6-d2 4.8-r 0.5-L 78-l 7-l1 35)	NEXT-TNT H.2 CRL-3	5	6	4.8	0.5	78	7	35	2
H.2 CRL (d 6-D 6-d2 5.8-r 0.5-L 120-l 9-l1 50)	NEXT-TNT H.2 CRL-4	6	6	5.8	0.5	120	9	50	2
H.2 CRL (d 6-D 6-d2 5.8-r 1-L 120-l 9-l1 50)	NEXT-TNT H.2 CRL-5	6	6	5.8	1	120	9	50	2
H.2 CRL (d 8-D 8-d2 7.8-r 0.5-L 120-l 11-l1 55)	NEXT-TNT H.2 CRL-6	8	8	7.8	0.5	120	11	55	2
H.2 CRL (d 8-D 8-d2 7.8-r 1-L 120-l 11-l1 55)	NEXT-TNT H.2 CRL-7	8	8	7.8	1	120	11	55	2
H.2 CRL (d 8-D 8-d2 7.8-r 1.5-L 120-l 11-l1 55)	NEXT-TNT H.2 CRL-8	8	8	7.8	1.5	120	11	55	2
H.2 CRL (d 10-D 10-d2 9.6-r 0.5-L 150-l 13-l1 65)	NEXT-TNT H.2 CRL-9	10	10	9.6	0.5	150	13	65	2
H.2 CRL (d 10-D 10-d2 9.6-r 1-L 150-l 13-l1 65)	NEXT-TNT H.2 CRL-10	10	10	9.6	1	150	13	65	2
H.2 CRL (d 10-D 10-d2 9.6-r 1.5-L 150-l 13-l1 65)	NEXT-TNT H.2 CRL-11	10	10	9.6	1.5	150	13	65	2
H.2 CRL (d 12-D 12-d2 11.5-r 1-L 150-l 15-l1 70)	NEXT-TNT H.2 CRL-12	12	12	11.5	1	150	15	70	2
H.2 CRL (d 12-D 12-d2 11.5-r 1.5-L 150-l 15-l1 70)	NEXT-TNT H.2 CRL-13	12	12	11.5	1.5	150	15	70	2
H.2 CRL (d 12-D 12-d2 11.5-r 2-L 150-l 15-l1 70)	NEXT-TNT H.2 CRL-14	12	12	11.5	2	150	15	70	2
