Fresa ad elevata prestazione 35°/38° fino a 65HRC

Fresa ad elevata prestazione 35°/38° fino a 65HRC
Metallo duro: K10 micrograna < 0,5μ
Applicazioni: metalli fino a 65 HRC. Acciai altamente temprati,
ghisa e metalli non ferrosi. Assenza di vibrazione -
Smusso d'angolo - Divisione irregolare
Su richiesta: DIN 6535 HB

​​​​​​​
​​​​​​​

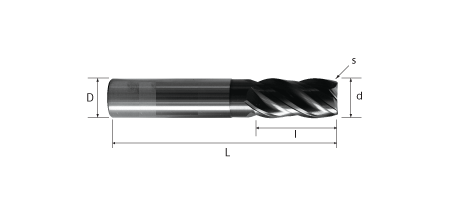

PRODOTTO	CODICE	d	D	l	L	s	d2	l1	Z
4T-HPC (d 3-D 6-l 8-L 57-s 0.1-d2 2.8-l1 15)	NEXT-TNT 4T-HPC-3.00	3	6	8	57	0.1	2.8	15	4
4T-HPC (d 4-D 6-l 11-L 57-s 0.1-d2 3.5-l1 17)	NEXT-TNT 4T-HPC-4.00	4	6	11	57	0.1	3.5	17	4
4T-HPC (d 5-D 6-l 13-L 57-s 0.2-d2 4.5-l1 19)	NEXT-TNT 4T-HPC-5.00	5	6	13	57	0.2	4.5	19	4
4T-HPC (d 6-D 6-l 13-L 57-s 0.2-d2 5.5-l1 21)	NEXT-TNT 4T-HPC-6.00	6	6	13	57	0.2	5.5	21	4
4T-HPC (d 8-D 8-l 19-L 63-s 0.2-d2 7.5-l1 26)	NEXT-TNT 4T-HPC-8.00	8	8	19	63	0.2	7.5	26	4
4T-HPC (d 10-D 10-l 22-L 72-s 0.25-d2 9.5-l1 30)	NEXT-TNT 4T-HPC-10.00	10	10	22	72	0.25	9.5	30	4
4T-HPC (d 12-D 12-l 26-L 83-s 0.3-d2 11.5-l1 37)	NEXT-TNT 4T-HPC-12.00	12	12	26	83	0.3	11.5	37	4
4T-HPC (d 16-D 16-l 32-L 92-s 0.4-d2 15.5-l1 42)	NEXT-TNT 4T-HPC-16.00	16	16	32	92	0.4	15.5	42	4
4T-HPC (d 20-D 20-l 38-L 104-s 0.5-d2 19.5-l1 50)	NEXT-TNT 4T-HPC-20.00	20	20	38	104	0.5	19.5	50	4
